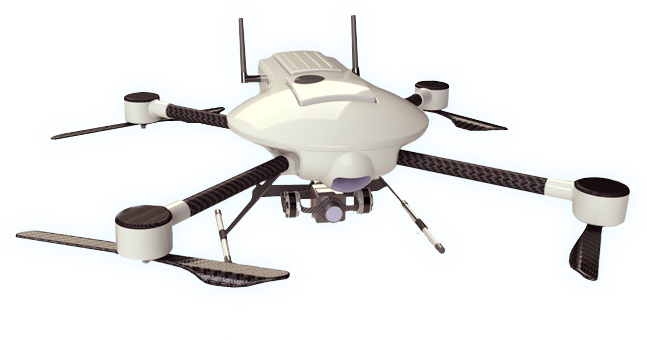

Complex Phoenix based on unmanned aerial vehicle (UAV) is designed for distant objects monitoring in the visible and infrared ranges and for usage
as a separate product and as a part of other complex security systems.

• • The intuitive touch sensitive interface, multifunctionality, requires minimal user training.

• • Flights in the difficult weather conditions.

• • Mobility of the system, the minimal preparation time to the flight.

Autonomy

The unmanned aircraft with an automatic control system (autopilot)

Navigation system with inertial correction (GPS/GLONASS)

Tracking the cards of the Google, Yandex, OpenStreetMap search engines

Integration with the other security systems.

Interaction with the system "FOLC" allows to realise an integrated approach to the protection of the objects.

Ability to use different payloads

Course camera, release control camera (straight down)

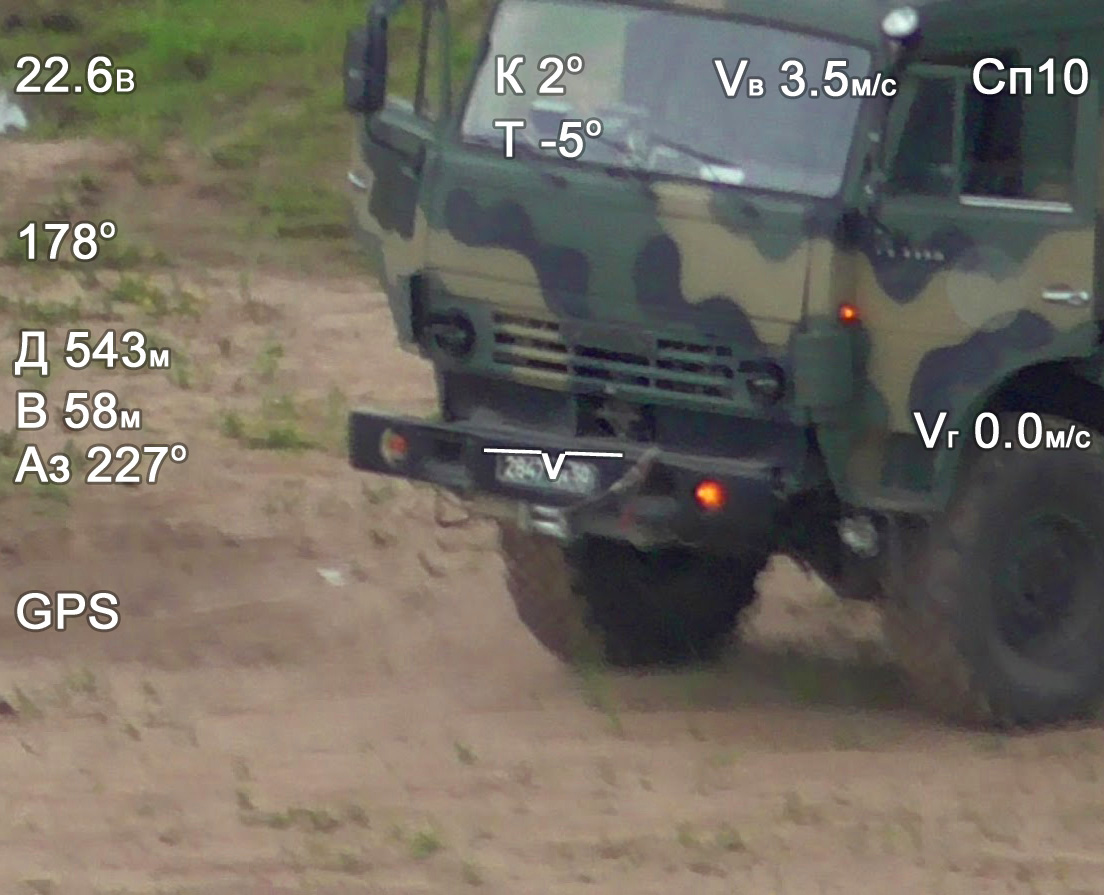

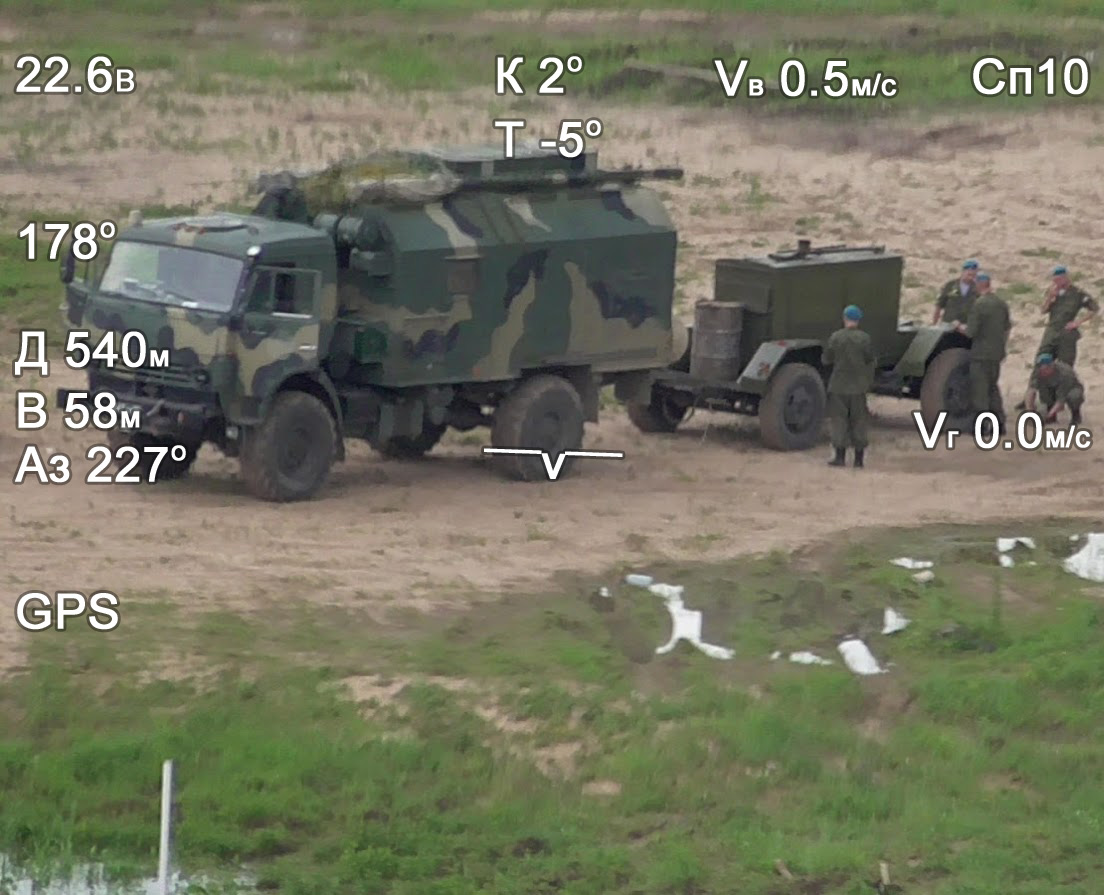

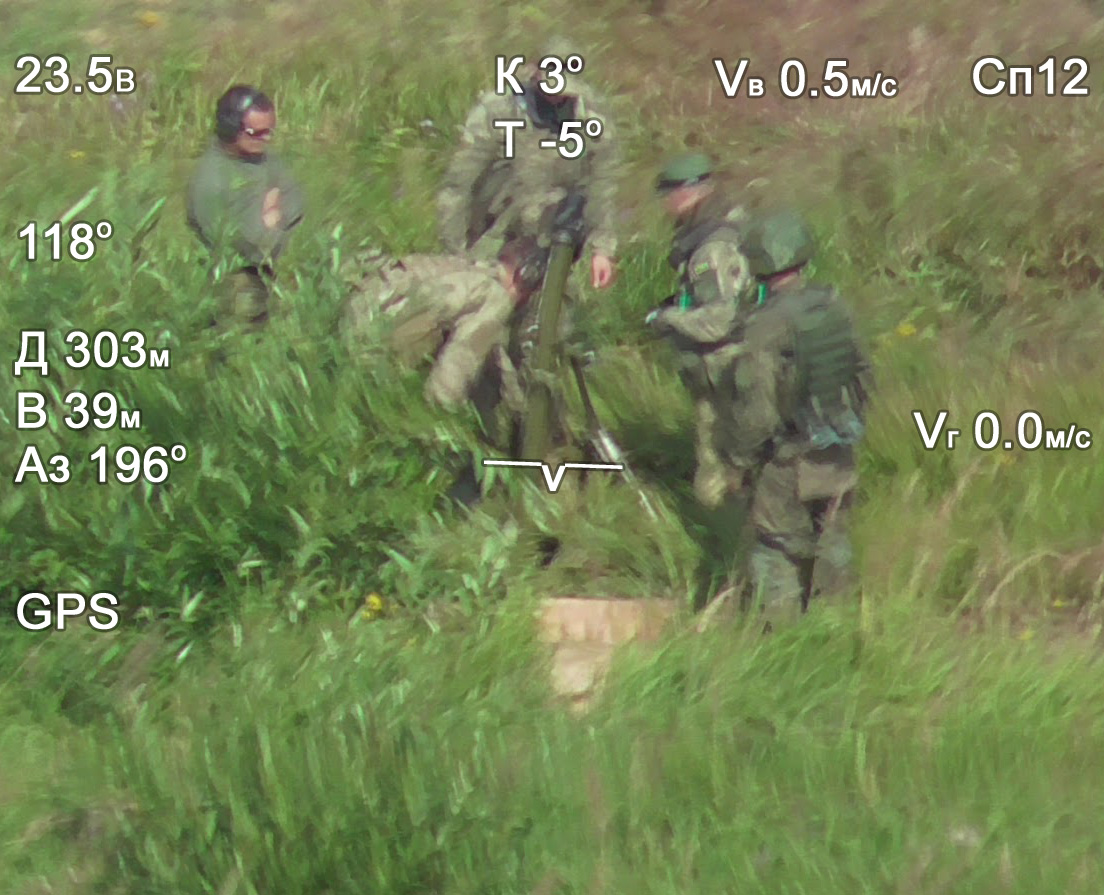

Double-axis suspension with the fiftyfold zoom camera with a resolution of 1920x1080

Infrared camera with a resolution of 384x288

Release for cargo drop

Compact and reliable system

The ground control system (GCS) includes a set of spare parts and a replaceable battery, which is charged directly in the GCS case.

GCS case is moisture and water resistant

Ease of maintenance

The complex can be served by one operator

Replacing the battery, payloads in the field does not require any special tools.

Possibility of video recording to the removable media on board.

Various control and flight modes

UAV flight control modes — manual/automatic

Hovering with opportunity to control the height and azimuth

Dynamic adjustment of the route during the flight by the user or external systems commands

Specifications:

Flight time: up to 40 minutes

Wind resistance: 10 m/s

Ambient temperature: from -20°C to +50°C

Line of sight: 1.5 kilometers (undisguised object)

Practical flying range: not less than 12 km

Flight height: up to 2 km

Launch: vertical takeoff and landing, does not require any special airstrip

Dimensions: diameter - 144 cm, height - 30 cm

Weight without a load: 5 kg

Equipment

• Copter
• Course camera
• Double-axis suspension with the fiftyfold zoom camera
• Release control camera (frame - straight down)
• Release for cargo drop
• Possibility to equip the set by the suspension with an infrared camera, interfaced with a regular camera
• Ground Control System (GCS)
• Spare parts set
• Replaceable battery
• Waterproof GCS case

Phoenix is capable to detect moving objects on the general background in the real time and follow them.

Due to the vertical takeoff and landing Phoenix is ideal for continuous monitoring of the target, which in turn provides the operator with full information of the intentions and actions of the observed object, so the operator is able to make the best decision.

Thus, we have an ideal platform for a wide range of tasks in any conditions, including:

• Aerial photography
• Perimeter and/or linear objects monitoring
• Covert intelligence and surveillance
• Accident prevention and emergency response

---
